K Nearest Neighbor

0x01 KNN

采用测量不同特征值之间的距离进行分类

优点：

• 精度高
• 对异常值不敏感
• 无数据输入假定

缺点：

• 计算复杂度高
• 空间复杂度高

适用数据范围：

• 数值型
• 标称型

0x02 算法实现

算法描述

• 1.计算测试数据与各个训练数据之间的距离

• 2.按照距离的递增关系进行排序

• 3.选取距离最小的K个点

• 4.确定前K个点所在类别的出现频率

• 5.返回前K个点中出现频率最高的类别作为测试数据的预测分类

def classify0(inX, dataSet, labels, k):
    '''

    :param inX: 输入向量
    :param dataSet: 训练数据集
    :param labels: 标签
    :param k: k
    :return:
    '''
    #距离计算
    dataSetSize = dataSet.shape[0] #读取矩阵第一维度的长度
    diffMat = tile(inX, (dataSetSize, 1)) - dataSet #tile把inX复制dataSetSize维度
    sqDiffMat = diffMat**2
    sqDistances = sqDiffMat.sum(axis=1)
    distances = sqDistances**0.5
    #选择距离最小的k个点
    sortedDistIndicies = distances.argsort()
    print(sortedDistIndicies)
    classCount={}
    for i in range(k):
        voteIlabel = labels[sortedDistIndicies[i]]
        classCount[voteIlabel] = classCount.get(voteIlabel, 0) + 1
    #排序
    sortedClassCount = sorted(classCount.items(), key=operator.itemgetter(1), reverse=True)
    return sortedClassCount[0][0]

0x03 实例1

• 收集数据

• 准备数据

def file2matrix(filename):
    with open(filename, "r") as fr:
        frreadlines = fr.readlines()
        numberOfLines = len(frreadlines)
        returnMat = zeros((numberOfLines, 3))
        classLabelVector = []
        index = 0
        for line in frreadlines:
            line = line.strip()
            listFromLine = line.split('\t')
            returnMat[index, :] = listFromLine[0:3]
            labels = {'didntLike': 1, 'smallDoses': 2, 'largeDoses': 3}
            classLabelVector.append(labels[listFromLine[-1]])
            index += 1
        return returnMat, classLabelVector

• 分析数据

def DataMat(data, labels):
    fig = plt.figure()
    ax = fig.add_subplot(111)
    ax.scatter(data[:, 0], data[:, 1], 15.0*array(labels), 15.0*array(labels))
    plt.show()

• 处理数据

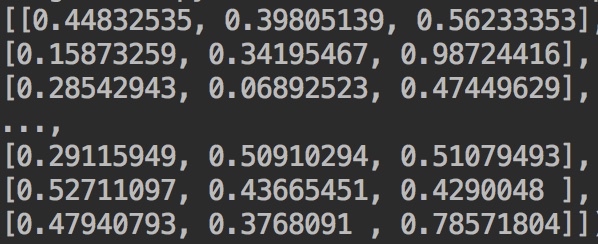

归一化数值，转化到0~1之间

newV = (oldV-min)/(max-min)

def autoNorm(dataSet):
    minVals = dataSet.min(0)
    maxVals = dataSet.max(0)
    ranges = maxVals - minVals
    m = dataSet.shape[0]
    normDataSet = dataSet - tile(minVals, (m, 1))
    normDataSet = normDataSet/tile(ranges, (m, 1))
    return normDataSet, ranges, minVals

• 测试算法

对hoRatio和k进行参数调整，寻找最佳值

def testData(data_mat, data_label):
    hoRatio = 0.80 #内变量
    normDataSet, ranges, minVals = autoNorm(data_mat)
    m = normDataSet.shape[0]
    numTestVecs = int(m * hoRatio)
    trueCount = 0.0
    for i in range(numTestVecs):
        classifierResult = classify0(normDataSet[i, :], normDataSet[numTestVecs:m, :], data_label[numTestVecs:m], 5)
        if (classifierResult == data_label[i]):
            trueCount += 1.0
    print("the total true rate is: %f" % (trueCount/float(numTestVecs)*100) + "%")
    print(trueCount)

• 使用算法

def usemode(a, b, c):
    file_path = "datingTestSet.txt"
    data_mat, data_label = file2matrix(file_path)
    normDataSet, ranges, minVals = autoNorm(data_mat)
    inarr = array([a, b, c])
    classifierResult = classify0((inarr-minVals)/ranges, normDataSet, data_label, 5)
    return classifierResult

result = usemode(40920, 8.326976, 0.953952)

(inarr-minVals)/ranges是传入参数归一化后的结果，代入classify0模型，求出与历史数据中的临近值，即结果

0x04 实例2

手写数字识别

def img2vector(filename):
    returnVect = zeros((1,1024))
    fr = open(filename)
    for i in range(32):
        lineStr = fr.readline()
        for j in range(32):
            returnVect[0, 32*i+j] = int(lineStr[j])
    return returnVect

def handwritingClassTest():
    hwLabels = []
    trainingFileList = listdir('digits/trainingDigits')
    m = len(trainingFileList)
    trainingMat = zeros((m, 1024))
    for i in range(m):
        #从文件名上解析当前文件中的正确值，存入label
        fileNameStr = trainingFileList[i]
        fileStr = fileNameStr.split('.')[0]
        classNumStr = int(fileStr.split('_')[0])
        hwLabels.append(classNumStr)
        trainingMat[i, :] = img2vector('digits/trainingDigits/%s' % fileNameStr)
    testFileList = listdir('digits/testDigits')
    trueCount = 0.0
    mTest = len(testFileList)
    for i in range(mTest):
        fileNameStr = testFileList[i]
        fileStr = fileNameStr.split('.')[0]
        classNumStr = int(fileStr.split('_')[0])
        vectorUnderTest = img2vector('digits/testDigits/%s' % fileNameStr)
        classifierResult = classify0(vectorUnderTest, trainingMat, hwLabels, 3)
        if (classifierResult == classNumStr): trueCount += 1.0
    print("\nthe total true rate is: %f" % (trueCount/float(mTest)))

0x05 安全应用

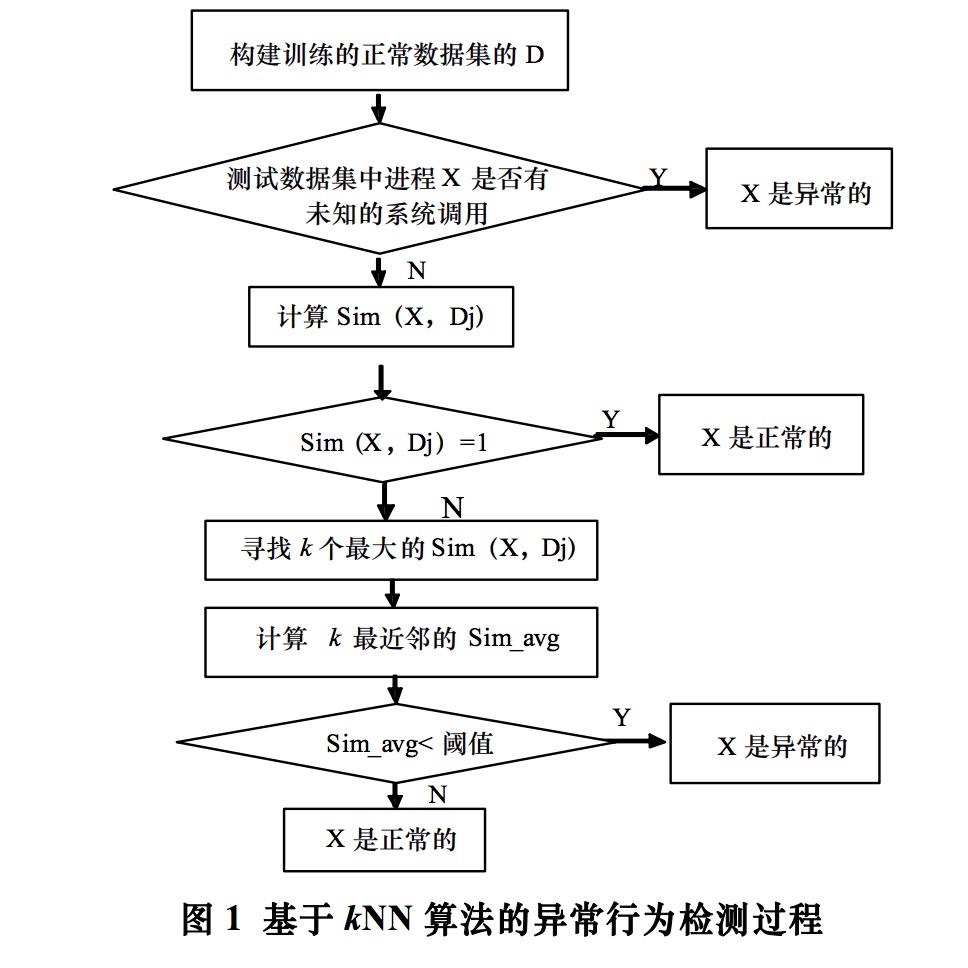

从数学角度来看，异常行为检测也是对被检测的未知行为进行分类的过程，未知行为与已知的正常行为相似，则该行为是正常行为，否则是入侵行为[1]

还有像恶意软件检测等安全领域应用

0x06 其他应用

• 文字识别
• 人脸识别
• 医用图像处理

参考：[1]基于 kNN 算法的异常行为检测方法研究
